Coleco HS-10 HS-12

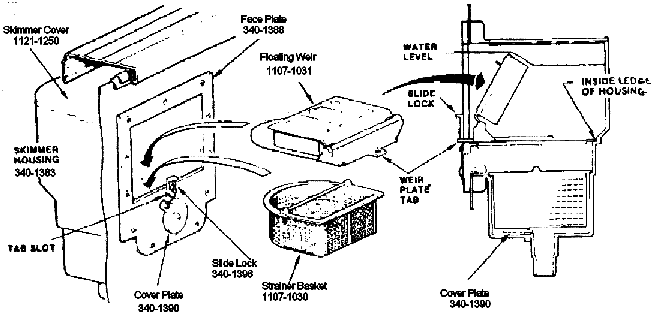

Lomart 60-4012 Skimmer
Parts



Pictures of some of the parts

Enter Quantity of Parts Needed, When Finished Click on View Cart/Check Out

LIMITED QUANTITIES ON ALL ITEMS

Description Part Number Price Qty/Buy
Cover Plate 340-1390 $2.00

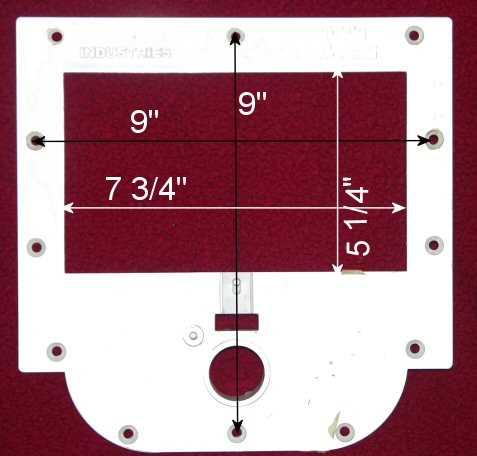

Face Plate 340-1388 $11.00
Face Plate Gasket 308-1068 (Req 2) $9.00
Floating Weir 1107-1031 $29.99
Skimmer Housing 340-1383 No Longer Available, Use new Lomart Skimmer
If you need a new skimmer housing, you will need to replace your skimmer with the new Lomart Skimmers,  See New Skimmers
Skimmer Housing Cover 1121-1250 $14.00
Slide Lock 340-1396 Obsolete
Strainer Basket 1107-1030   NLA
Vacuum Adapter 340-1367 $3.99

History of Changes

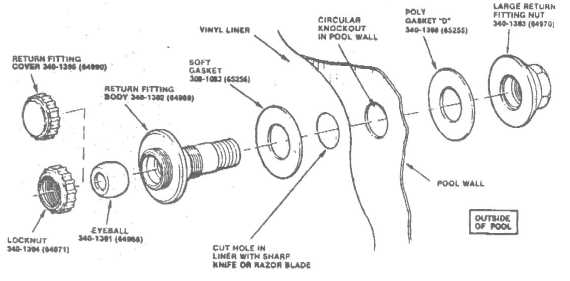

Older Lomart-Coleco Fitting Replaced the Fitting with Screws

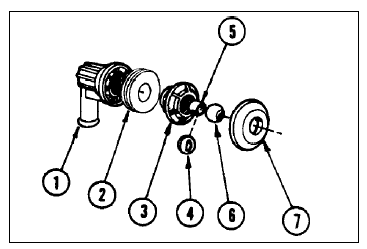

Fitting as it exists today

Items 4, 5, 6 and 7 can be left off and a 90 degree fitting can be screwed in for directional control.
See directional fittings at: http://hayward-parts.com/fittings2.htm

This fitting can be purchased at:
