1-2263-070 Lomart Pump, Promega, Ultra Promega

Lomart Pump & Motor
Promega, Ultra Promega Pump
1-2263-070, 1-2263-071, 1-2263-075, 1-2264-070, 1-2264-071, 1-2264-075,
1-2265-070, 1-2265-071, 1-2265-075, 1-2266-070, 1-2266-071
1-2264-007, 1-2265-007, 1-2265-007, 1-2264-008, 1-2265-008, 1-2266-008

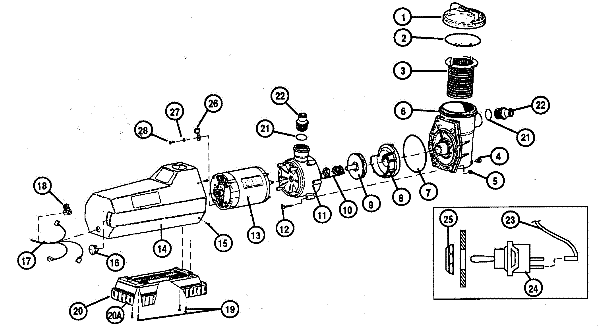

Pump and Motor Parts List Model Numbers 1-2263-070, 1-2263-071, 1-2263-075, 1-2264-070, 1-2264-071, 1-2264-075, 1-2265-070, 1-2265-071, 1-2265-075, 1-2266-070, 1-2266-071 1-2264-007, 1-2265-007, 1-2265-007, 1-2264-008, 1-2265-008, 1-2266-008
Item	P/N	QTY	Description	Model
1	1121-1429	1	Strainer Cover	All
2	308-1065	1	Strainer O-Ring	All
3	1107-1018	1	Strainer Basket	All
4	340-1584	1	1/4" Pipe Plug	All
5	321-1021	6	1/4" 20 Flange Nut	All
6	340-1910	1	Strainer Pot	All
7	308-1064	1	Pump O-Ring	All
8	340-1853	1	Pump Volute	All
9	1107-1387	1	Impeller	All 1-2263 Models
	1107-1388	1	Impeller	All 1-2294 & 1-2265 Models
	1107-1547	1	Impeller	1-2266-070, 1-2266-071
10	1121-1057	1	Seat Set	All
11	1107-1273	1	Pump Housing	All
12	330-1106	6	1/4"-20 x 2' Flange Bolt	All
14	1121-1510	1	Motor Enclosure UL/NEC	1-2263-070, 1-2264-070 1-2265-070, 1-2266-070
14	1121-1508	1	Motor Enclosure UL/CSA	1-2263-071, 075 1-2264-071, 075 1-2265-071, 075, 1-2266-071
15	330-1023	4	8 x 5/8" Hex Washer Screw	All
16	343-1074	1	Switch Hole Plug	All 070 and 075 Models
17	1100-1326	1	Power Cord 50Hz	All 075 Models
	1100-1108	1	Power Cord NEC/UL	All 070 Models
	1100-1220	1	Power Cord 25' UL/CSA	All 071 Models
18	303-1104	1	Strain Relief	All 071 Models
18	303-1120	1	Strain Relief	All 070 Models
19	303-1057	4	10-16 x 5/8" Hex Washer Hd Screw	All
20	340-1977	1	Filter base	All
21	308-1042	2	O ring Hose Adapter	All
22	340-1580	2	Hose Adapter	All
1-2263-071, 1-2264-071, 1-2265-071, Only (UL/CSA)
23	1100-1221	1	Jumper Wire
24	303-1109	1	Switch
25	303-1110	1	Switch Nut
1-2263-070, 1-2264-070, 1-2265-070, 1-2266-070 Only (UL/NEC)
26	303-1103	1	Solderless Lug
27	526-1003	1	#10 Lock Washer
28	330-1131	1	#10-24 x 3/8" Tapping Screw
