Spectra 1

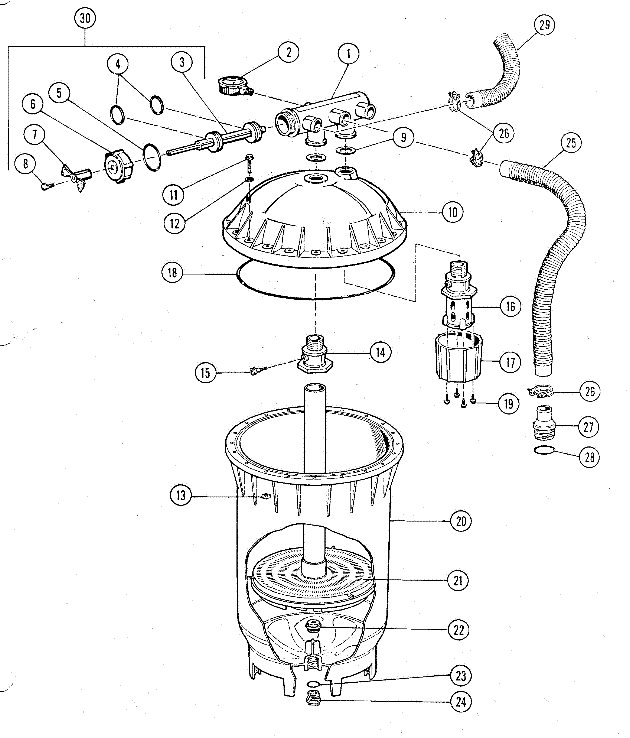

Filter Components Parts List
Models 1-1133-089, 1-1134-089
Select Item Number, Find Part Number Below then See
Parts Price List and Order Page
|
Spectra 1 Models 1-1133-089, 1-1134-089 |
| Item |
P/N |
QTY |
Description |
| 1 |
1121-1388 |
1 |
Valve Body Assembly |
| 2 |
395-1007 |
1 |
Pressure Gauge |
| 3 |
340-1280 |
1 |
Valve Spool |
| 4 |
308-1006 |
2 Req |
Piston O-ring |
| 5 |
308-1081 |
1 |
Valve Cap Gasket |
| 6 |
1107-1278 |
1 |
Valve Cap Assembly |
| 7 |
340-1843 |
1 |
Valve Handle |
| 8 |
324-1018 |
1 |
1/4-20 x 1" Carriage Bolt |
| 9 |
308-1109 |
2 Req |
Valve Port Gasket |
| 10 |
340-1749 |
1 |
Tank Cover -- NO LONGER AVAILABLE/No Substitute |
| 11 |
330-1050 |
20 Req |
#10-24 x 1 1/4" Hex Head Screw |
| 12 |
327-1026 |
20 Req |
#10 Washer |
| 13 |
321-1064 |
20 Req |
#10-24 Square Nut |
| 14 |
340-1285 |
1 |
Valve Adapter |
| 15 |
343-1100 |
1 |
Air Relief Adaptor |
| 16 |
340-1284 |
1 |
Distributor Body |
| 17 |
340-1288 |
1 |
Distributor Dish |
| 18 |
308-1115 |
1 |
Tank )-ring |
| 19 |
330-1023 |
4 Req |
#8 x 5/8" Hex Head Screw |
| 20 |
340-1607 |
1 |
Tank Bottom |
| 21 |
1107-1348 |
1 |
Underdrain Assembly |
| 22 |
340-1327 |
1 |
Drain Screen |
| 23 |
308-1074 |
1 |
Drain O-ring |
| 24 |
340-1328 |
1 |
Drain Plug |
| 25 |
346-1020 |
1 |
1 1/2" x 22" Hose |
| 26 |
387-1003 |
6 Req |
1 1/2" Hose Clamp |
| 27 |
340-1580 |
2 Req |
1 1/2" Hose Adapter |
| 28 |
308-1042 |
2 Req |
O-Ring, Hose Adapter |
| 29 |
346-1037 |
2 Req |
1 1/2" x 8' Hose |
| 30 |
1121-1398 |
1 |
Valve Piston & Handle Assembly |
| 31 |
340-1584 |
1 |
1/4" Plug |
|
