Filter Components Parts List
Model 1-1023-000, 1-1023-001, 1-1023-005,
1-1024-000, 1-1024-001, 1-1025-005,
1-1025-000, 1-1025-001, 1-1025-005,

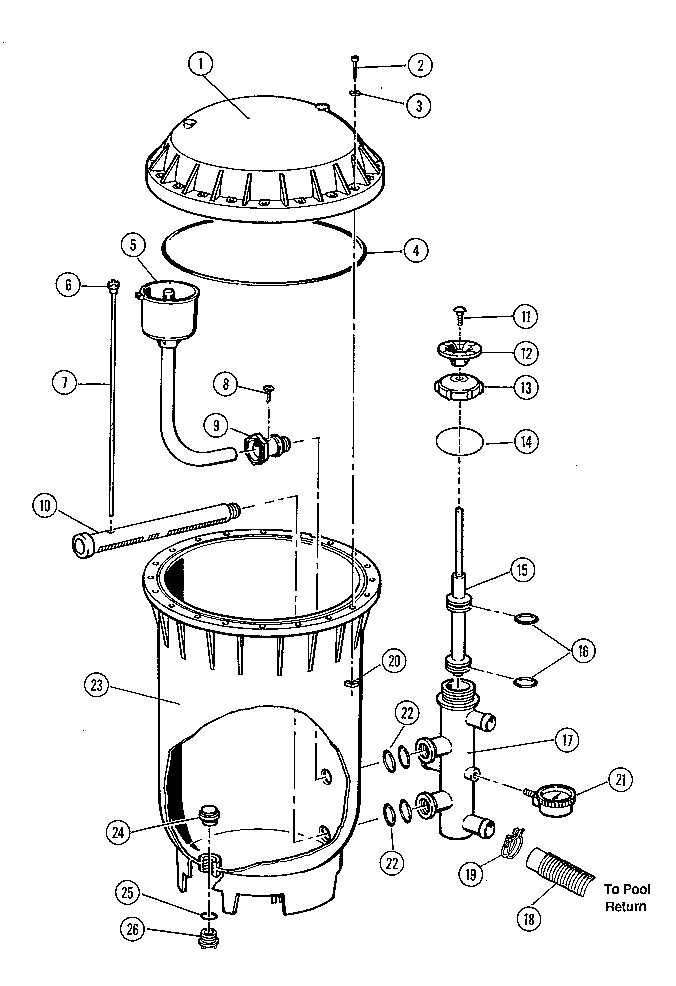

Select Item Number, Find Part Number
Below then See Parts Price List To Order
|
Parts List |
| Item |
P/N |
QTY |
Description |
| 1 |
340-1430 |
1 |
Tank Cover |
| 2 |
330-1049 |
20 Req |
#10-24 x1" Pan Head Screw |
| 3 |
327-1026 |
20 Req |
#10 Plain Washer |
| 4 |
308-1075 |
1 |
Tank O ring |
| 5 |
1107-1073 |
1 |
Distributor tube Assembly |
| 6 |
343-1100 |
1 |
Air Relief |
| 7 |
341-1128 |
1 |
Aair Relief Tubing |
| 8 |
330-11058 |
1 |
#10 x 1/2" Lg Phillips Hd Screw |
| 9 |
340-1285 |
1 |
Valve Adapter |
| 10 |
1107-1094 |
1 |
Underdrain Assembly |
| 11 |
330-1103 |
1 |
1/4-20 X 5/8" Carriage Bolt |
| 12 |
340-1433 |
1 |
Valve Handle |
| 13 |
1107-1093 |
1 |
Valve Cap Assembly |
| 14 |
308-1081 |
1 |
Valve Cap Gasket |
| 15 |
340-1280 |
1 |
Vavle Spool |
| 16 |
308-1006 |
2 Req |
Piston-O-Ring |
| 17 |
1107-1091 |
1 |
Valve Body Thd.Assy Model 1-1024-089 |
| |
1107-1092 |
1 |
Valve Body Thd.Assy Model 1-1023-089 |
| 18 |
346-1016 |
2 Req |
1-1/4" x 4' hose |
| 19 |
387-1010 |
6 Req |
1-1/4" Hose Clamp |
| 20 |
321-1025 |
20 Req |
310-24 Square Nut |
| 21 |
395-1007 |
1 |
Pressure Gauge (Model 1-11024-089) |
| 22 |
308-1109 |
4 Req |
Valve Port Gasket |
| 23 |
340-1434 |
1 |
Tank Bottom |
| 24 |
340-1327 |
1 |
Drain Screen |
| 25 |
308-1074 |
1 |
O-Ring .858 I.D x .139 Wall |
| 26 |
340-1328 |
1 |
Drain Plug |
|
