Lomart Ultima 4000
1-1570-069

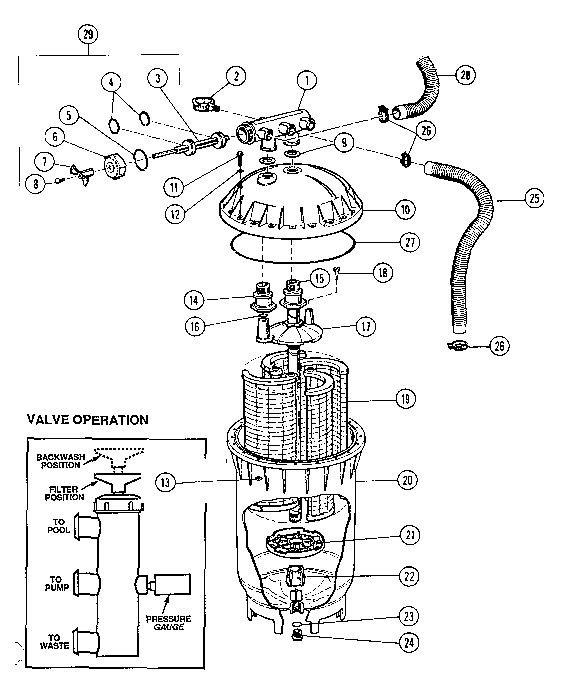

Select Item Number, Find Part
Number Below then See Parts Price List to Order
Lomart Ultima 4000
1-1570-069
| Item |
P/N |
QTY |
Description |
| 1 |
1121-1388 |
1 |
Valve Body Assembly |
| 2 |
395-1014 |
1 |
Pressure Gauge |
| 3 |
340-1280 |
1 |
Valve Spool |
| 4 |
308-1006 |
2 |
Piston O-Ring |
| 5 |
308-1081 |
1 |
Valve Cap Gasket |
| 6 |
1107-1278 |
1 |
Valve Cap Assembly (Pewter) |
| 7 |
340-1843 |
1 |
Valve Handle 1993 |
| 8 |
324-1018 |
1 |
1/4-20 x 1" Carriage Bolt |
| 9 |
308-1109 |
2 |
Valve Port Gasket |
| 10 |
340-1797 |
1 |
Tank Cover, Pewter |
| 11 |
330-1050 |
20 |
#10-24 x 1-1/4" Hex Hd Screw |
| 12 |
327-1026 |
20 |
#10 Washer |
| 13 |
321-1064 |
20 |
#10-24 Square Nut |
| 14 |
340-1285 |
1 |
Valve Adapter |
| 15 |
1107-1341 |
1 |
Adapter and Pipe Assembly |
| 16 |
308-1174 |
1 |
Collector O-Ring |
| 17 |
1107-1342 |
1 |
Upper Collector Assembly |
| 18 |
343-1100 |
1 |
Air Relief Valve |
| 19 |
1119-1046 |
4 |
D.E. Filter Grid |
| 20 |
340-1798 |
1 |
Tank Bottom, Pewter |
| 21 |
340-1747 |
1 |
Grid Support |
| 22 |
340-1748 |
1 |
Support Nut |
| 23 |
308-1074 |
1 |
Drain O-ring |
| 24 |
340-1328 |
1 |
Drain Plug |
| 25 |
346-1020 |
1 |
Hose 1-1/2" X 22"' |
| 26 |
387-1003 |
6 |
1 1/2" Hose Clamp |
| 27 |
308-1115 |
1 |
O-Ring, 14.88 I.D. x .161 Wall |
| 28 |
346-1037 |
2 |
Hose, 1-1/2" x 8' |
| 29 |
1121-1398 |
1 |
Valve Piston & Handle Assy ( Includes
Items 3 thru 8) |
|
