Lomart Skimmer
Model 1-4013-006, 1-4113-006, 1-4213-006,
1-4313-006
1-4115-006, 1-4215-006, 1-4315-006
1121-1466 White Skimmer Lid
1121-1467 Gray Skimmer Lid
1121-1468 Almond Skimmer Lid |
 |

Select
Item Number, Find Part Number Below then
See Parts Price List and Order Form
|

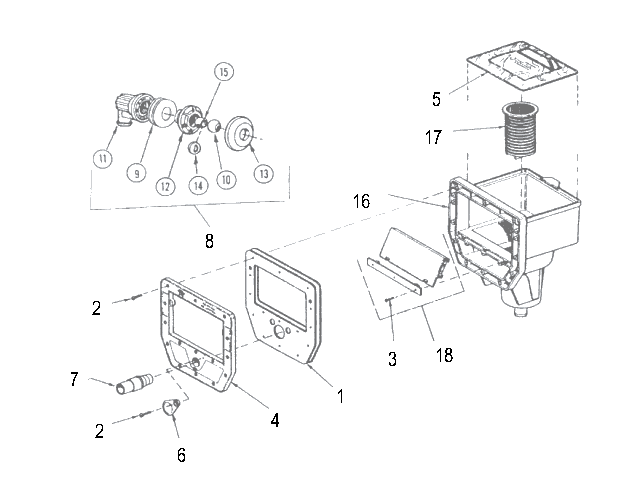

Model 1-4113-006, 1-4115-006 (
Gray) Parts List |
| Item |
P/N |
Description |
| 1 |
307-1032 |
Deluxe Skimmer Gasket U Gasket (New,
just 1 required
Replaces 308-1089) |
| 2 |
330-1004pak2 |
#12 x 27/32 Phillips Screw |
| 3 |
330-1008pak |
#8 x 1/2 Phillips Screw |
| 4 |
340-1589 |
Skimmer Face Plate |
| 5 |
1121-1467 |
Skimmer Lid |
| 6 |
340-1321 |
Cover Plate |
| 7 |
340-1590 |
Vacuum to Skimmer adapter |
| 8 |
1121-1300 |
Return Fitting Complete |
| 9 |
307-1031 |
Return Fitting Gasket (New, just 1
required
Replaces 308-1089) |
| 10 |
348-1027 |
Eyeball |
| 11 |
340-1591 |
Return Fitting Body |
| 12 |
340-1592 |
Return Fitting Adapter |
| 13 |
340-1593 |
Return Fitting Cover |
| 14 |
340-1594 |
Winterizing Disc |
| 15 |
340-1595 |
Eyeball Insert |
| 16 |
1107-1274
1121-1727 |
Skimmer Body w/decal |
| 17 |
1300-1002 |
Skimmer Basket |
| 18 |
1107-1275 |
Weir & Hinge Assy |
|
Model 1-4213-006, 1-4215-006 (
Almond) Parts List |
| Item |
P/N |
Description |
| 1 |
307-1032 |
Deluxe Skimmer Gasket U Gasket (New,
just 1 required
Replaces 308-1089) |
| 2 |
330-1004pak2 |
#12 x 27/32 Phillips Screw |
| 3 |
330-1008pak |
#8 x 1/2 Phillips Screw |
| 4 |
340-2087 |
Skimmer Face Plate |
| 5 |
1121-1468 |
Skimmer Lid |
| 6 |
340-1321 |
Cover Plate |
| 7 |
340-1253 |
Vac Hose Adapter |
| 8 |
1121-1461 |
Return Fitting Complete |
| 9 |
307-1031 |
Return Fitting Gasket (New, just 1
required
Replaces 308-1089) |
| 10 |
348-1027 |
Eyeball |
| 11 |
340-1773 |
Return Fitting Body |
| 12 |
340-1237 |
Return Fitting Adapter |
| 13 |
340-1238 |
Return Fitting Cover |
| 14 |
340-1240 |
Winterizing Disc |
| 15 |
340-1278 |
Eyeball Insert |
| 16 |
1107-1483
1121-1729 |
Skimmer Body w/decal |
| 17 |
1300-1002 |
Skimmer Basket |
| 18 |
1107-1275 |
Weir & Hinge Assy |
|
Model 1-4313-006, 1-4315-006 (
White) Parts List |
| Item |
P/N |
Description |
| 1 |
307-1032 |
Deluxe Skimmer Gasket U Gasket (New,
just 1 required
Replaces 308-1089) |
| 2 |
330-1004pak2 |
#12 x 27/32 Phillips Screw |
| 3 |
330-1008pak |
#8 x 1/2 Phillips Screw |
| 4 |
340-1789 |
Skimmer Face Plate |
| 5 |
1121-1466 |
Skimmer Lid |
| 6 |
340-1321 |
Cover Plate |
| 7 |
340-1410 |
Vac Hose Adapter |
| 8 |
1121-1460 |
Return Fitting Complete |
| 9 |
307-1031 |
Return Fitting Gasket (New, just 1
required
Replaces 308-1089) |
| 10 |
348-1027 |
Eyeball |
| 11 |
340-1793 |
Return Fitting Body |
| 12 |
340-1791 |
Return Fitting Adapter |
| 13 |
340-1790 |
Return Fitting Cover |
| 14 |
340-1792 |
Winterizing Disc |
| 15 |
340-1801 |
Eyeball Insert |
| 16 |
1107-1482
1121-1728 |
Skimmer Body w/decal |
| 17 |
1300-1002 |
Skimmer Basket |
| 18 |
1107-1275 |
Weir & Hinge Assy |
|
