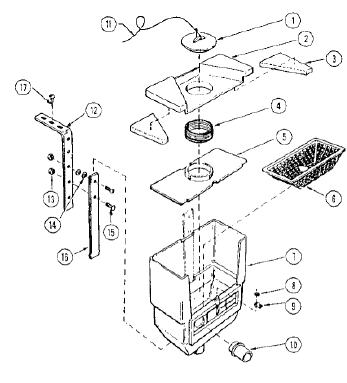

Lomart 1-4006-006 Over-Wall
Skimmer Parts
Doughboy 5-4006-006
Note Parts Numbers Needed and See
Order/Price List
| Item |
Part Number |
Description |
| 1 |
340-1366 |
Vacuuming Cover |
| 2 |
340-1362 |
Float Plate |
| 3 |
310-1031 |
Floatation |
| 4 |
341-1101 |
Flexible Hose |
| 5 |
340-1361 |
Base Plate |
| 6 |
340-1363 |
Strainer Basket |
| 7 |
1107-1029 |
Main Housing Assembly |
| 8 |
321-1026 |
PushNut |
| 9 |
340-1368 |
Base Plate Locking Screw |
| 10 |
340-1367 |
Vacuum Adapter |
| 11 |
310-1029 |
Plastic Line |
| 12 |
378-1019 |
Attaching Bracket (Upper) |
| 13 |
321-1004 |
1/4-20 Hex Nut |
| 14 |
327-1020 |
Flat Washer |
| 15 |
330-1012 |
1/4-20 x 1/2 Slotted Machine Screw |
| 16 |
378-1020 |
Attaching Bracket (Lower) |
| 17 |
330-1055 |
#14 3/4 Lg Screw |
|
