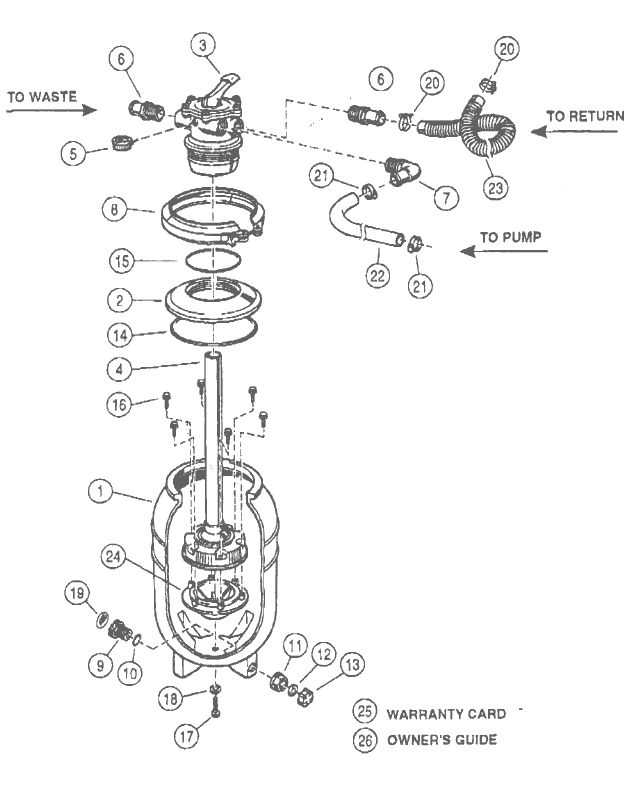

Lomart Spectra 3
1-2790-089 (1998 Only)
Select Item Number, Find Part Number Below
then See Parts Price List and Order Page
| Item |
Part Number |
Description |
| 1 |
1121-1478 |
Tank |
| 2 |
340-2104 |
Valve -Tank Adapter |
| 3 |
1121-1485 |
Valve Assembly |
| 4 |
1107-1445 |
Top Underdrain Assembly |
| 5 |
395-1014 |
2" Pressure Gauge |
| 6 |
340-2028 |
1 1/2 in. Hose Adapter |
| 7 |
340-1961 |
1 1/2 in. Hose Elbow Adapter |
| 8 |
387-1030 |
V Clamp |
| 9 |
340-1982 |
Drain Fitting |
| 10 |
308-1206 |
O Ring 1.287 ID |
| 11 |
340-1980 |
Drain Fitting Nut |
| 12 |
307-1001 |
Drain Cap Gasket |
| 13 |
340-2105 |
Drain Cap |
| 14 |
308-1205 |
O Ring 11.475 ID |
| 15 |
308-1234 |
O Ring 5.850 ID |
| 16 |
330-1023 |
#8 x 5/8 in. Screw |
| 17 |
330-1219 |
5/16 in -18 x 1 in Bolt |
| 18 |
308-1225 |
5/16 in Thread Seal |
| 19 |
340-1201 |
Drain Screen |
| 20 |
387-1003 |
1 1/2 in. Hose Clamp |
| 21 |
387-1023 |
#28 Band Clamp |
| 22 |
346-1049 |
1 1/2 in. x 4' Clear Hose |
| 23 |
346-1037 |
1 1/2 in. x 8' Hose |
| 24 |
1121-1486 |
Internal Tank Base w/insert |
|
